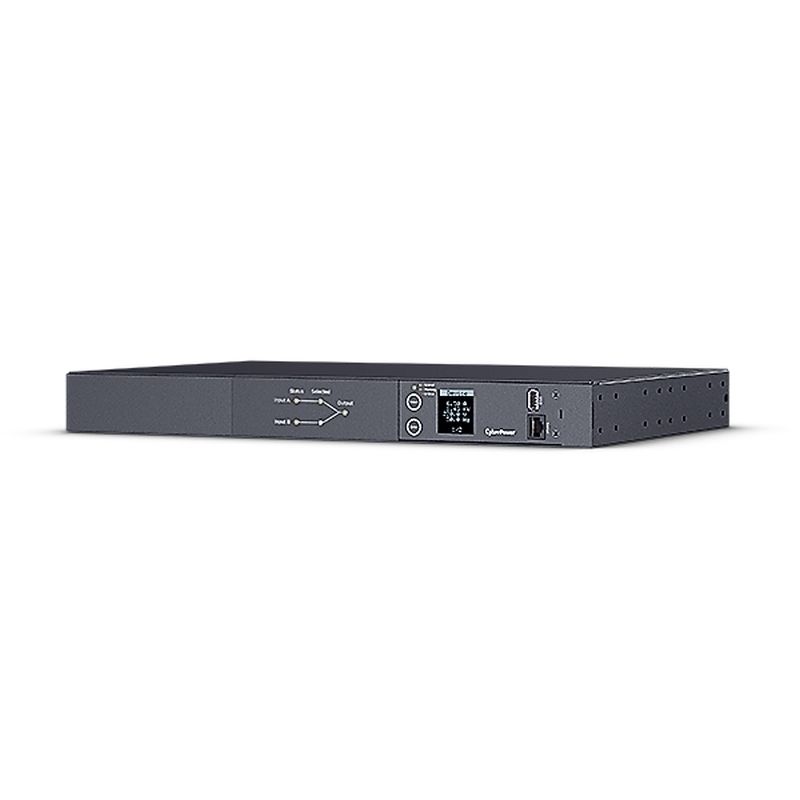

Cyberpower PDU24004 Metered ATS Power Distribution Unit - 10 Amp

Specifications:

• Phase: Single Phase


• Dual Power Inputs: Yes


• Nominal Input Voltage ( Vac ): 200 - 240


• Input Frequency ( Hz ): 50 / 60


• Maximum Input Current ( A ): 12 (UL) | 10 (CE)


• Overload Protection: Circuit Breaker


• Input Connector Type: IEC C14 x 2


• Power Cord Length: 3.05m


• Output Voltage ( V ): Depends on Input


• Outlets - # of Bank(s): 1


• Outlet(s) - Total: 12


• Outlet(s) - Rear: 12


• Outlet Type: IEC C13 x 12


• LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Serial Number | Hardware Version | Firmware Version


• Hot-swappable LCD Module: Yes


• LCD Setting & Control: Preferred Source | Source Configuration | Load Configuration | LCD Settings | Reset / Reboot


• LED Indicators: PDU Status | Source Status | Load


• Connectivity Port: RJ45 (for Serial)


• User-upgradeable Firmware: Yes


• Installed Rack Height (U): 1


• Form Factor: 1U Horizontal Rackmount


• Enclosure Construction: Steel


• Cord Retention Tray: Yes


• IEC Receptacle Locking: Yes


• External Site Ground Pin: Yes


• Adjustable Mounting Brackets: 1 Set


• Dimensions: 433 x 44 x 215mm


• Weight: 3.5kg


• Certifications: CE | FCC Class A | UL62368 | EN 55032 Class A | IEC 62368 | RoHS

Features:

• Real-time Local Monitoring


• Quick Transfer Time (Total < 10 ms)


• Digital Real-time Load Display


• Hot-swappable LCD Design


• Firmware Upgrade via USB


• Adjustable Mounting Brackets


• IEC Receptacle Locking


• Dual Inputs


• Industrial-grade Metal Housing


• User Configurable Color LCD


• LED Status Indicator


• User-upgradeable Firmware


• Cord Retention Tray

What's in the box?

• 1 x PDU24004


• 1 x User Manual


• 1 x Cord Retention Tray


• 1 x Mounting Brackets


• 1 x Cable Ties


• 1 x Screw Kit


• 1 x Power Cord


• 1 x Serial Cable
