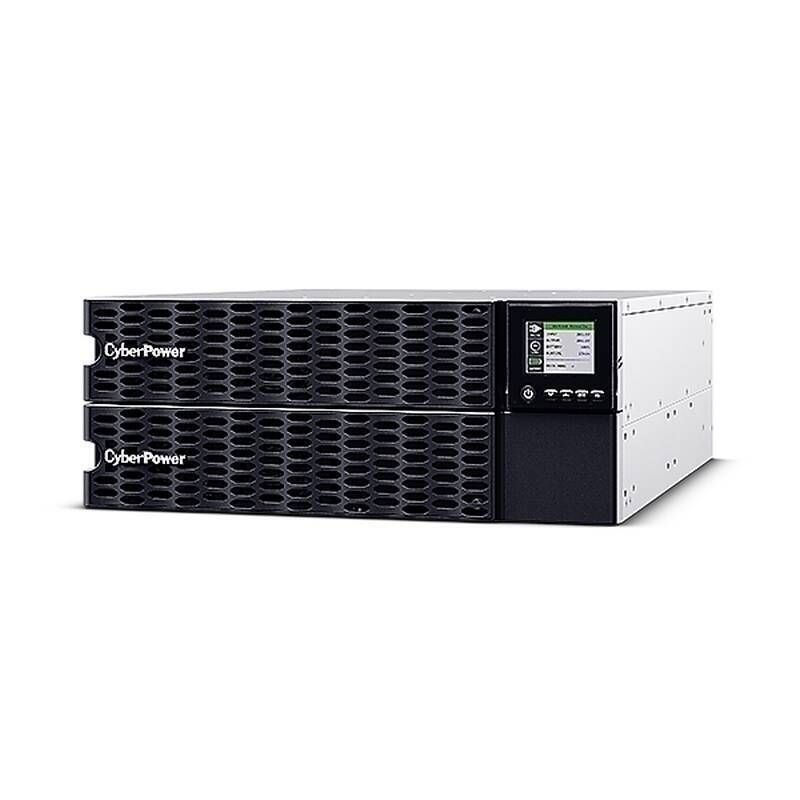

Cyberpower OL10KERTHD Smart App Racktower UPS System

Specifications:

• Phase: Single Phase


• Form Factor: Rackmount / Tower


• UPS Topology: Online Double Conversion


• Energy Saving Technology: Online ECO Mode Efficiency > 98%


• Active PFC Compatibility: Yes


• Generator Compatibility: Yes


• Input Voltage Range: 200 - 240v


• Input Frequency: 50 � 10 | 60 � 10


• Input Frequency Detection: Auto-sensing


• Rated Input Current: 54a


• Input Connector Type: Hardwire Terminal Block


• Output Capacity (VA): 10000


• Output Capacity (Watts): 10000


• On Battery Waveform: Pure Sine Wave


• Overload Protection: Internal Current Limiting / Circuit Breaker


• Overload Protection (Line Mode): 105-125% Load for 1 min / 125-150% Load for 10 sec


• Overload Protection (Battery Mode): 105-130% Load for 10 sec / 130-150% Load for 2 sec


• Overload Protection (Bypass Mode): Circuit Breaker


• Crest Factor: 3 : 1


• No. of Outlets: 11


• Battery Runtime at Half Load: 8.3 Mins


• Battery Runtime at Full Load: 2.4 Mins


• Typical Recharge Time: 4 Hours


• Start On Battery: Yes


• Smart Battery Management (SBM): Yes


• Built-in Battery Management Module: Yes


• User-replaceable: Yes - Qualified Personnel Only


• Hot-swappable: Yes


• Battery Type: Sealed Lead-acid


• Replacement Battery Pack (RBP): RBP0159


• Battery Voltage: 192v


• Compatible Extended Battery Module (EBM): BPE192VL2U01 (Built-in Charger)


• Surge Suppression: 2430 Joules


• Serial Port: Combo (RS232 + Dry Contact)


• SNMP/HTTP Remote Monitoring: Yes - RMCARD205 included


• Dimensions: 433 x 173 x 720mm


• Weight: 71.2kg


• Certifications: CE / EAC / RCM


• RoHS: Yes

Features:

• Online (Double Conversion) UPS Topology


• High Density Design


• High Output Power Factor


• Tiltable LCD Panel


• Surge and Spike Protection


• Controllable Outlet Groups


• Battery Management Technology


• Extended Battery Module (EBM)


• Emergency Power Off (EPO) Port


• PowerPanel Management Software


• ECO Mode


• Color LCD Panel


• Quick Charging Technology


• Automatically rotatable LCD


• Critical/Non-critical Load Outlets


• Generator Compatible


• Hot-swappable Batteries


• Smart Battery Management


• SNMP/HTTP Remote Management Capability
