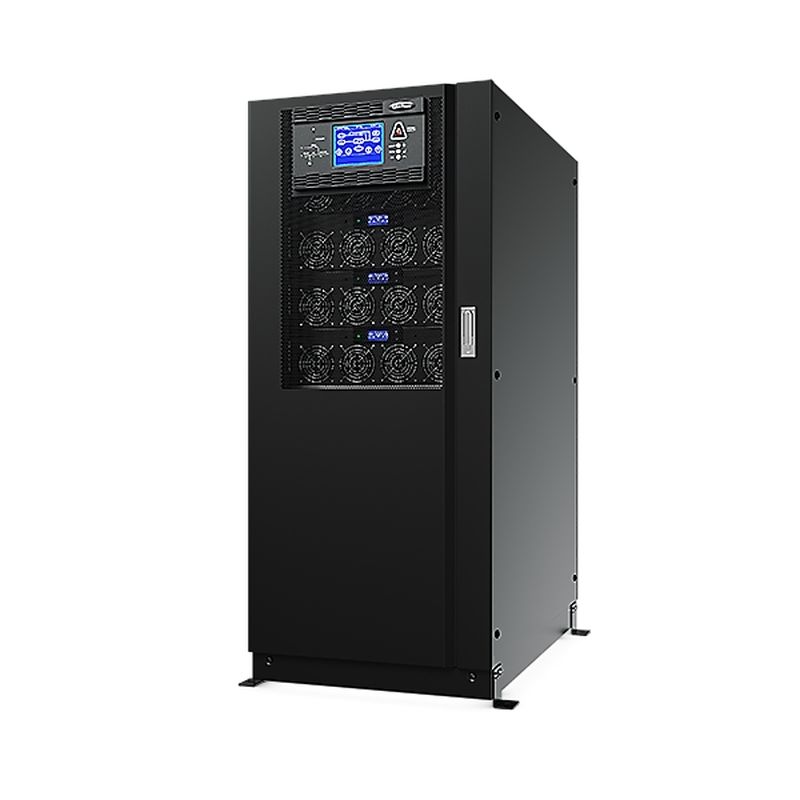

Cyberpower HSTP3T100KE Three Phase Datacenter UPS System

About Cyberpower HSTP3T100KE Three Phase Datacenter UPS System

CP 100KVA 90KW 3Phase UPS

Specifications:

•
  Phase: Three Phase



•
  Form Factor: Tower



•
  UPS Topology: Online Double Conversion



•
  Energy Saving Technology: Online ECO Mode Efficiency > 98%



•
  Normal Mode Efficiency: 95%



•
  Battery Mode Efficiency: 95%



•
  Parallel Expansion (Max. Units): 4



•
  Dual Power Inputs: Yes



•
  Generator Compatibility: Yes



•
  Nominal Input Voltage: Line to Neutral (L-N):220 / 230 / 240 Vac / Line to Line (L-L):380 / 400 / 415 Vac



•
  Input Voltage Range: Line to Neutral (L-N): 132 - 276 Vac | Line to Line (L-L): 228 - 478 Vac



•
  Configurable Voltage Range: Line to Neutral (L-N): 220 - 250 Vac | Line to Line (L-L): 380 - 435 Vac



•
  Input Frequency ( Hz ): 50 � 3 | 60 � 3



•
  Input Frequency Range: 40 - 70Hz



•
  Rated Input Current: 138 A



•
  Input Connector Type: Hardwire Terminal Block



•
  Capacity (VA): 100000



•
  Capacity (Watts): 90000



•
  On Battery Waveform: Pure Sine Wave



•
  Rated Output Voltage: Line to Neutral (L-N):220 / 230 / 240 Vac / Line to Line (L-L):380 / 400 / 415 Vac



•
  ECO Mode Voltage Tolerance: � 10 %



•
  Overload Protection: Internal Current Limiting | Circuit Breaker | Fuse



•
  Compatible Battery Types: VRLA / AGM / Gel / Wet



•
  Smart Battery Management (SBM): Yes



•
  User-replaceable: No



•
  Compatible Extended Battery Cabinet (EBC): SMBF17 / SMBF20 / SMBF26 / SMBF40 / SMBF65 / BCA100N125 / BCA12N63 / BCA20N125 / BCA40N125



•
  EMI/RFI Filtration: Yes



•
  Serial Port: RS232 x 1 + RS485 x 1 + Dry Contact x1



•
  Enclosure Construction: Metal



•
  Ingress Protection: IP20



•
  Dimensions: 600 x 1400 x 980mm



•
  Weight: 266kg



•
  Certifications: CE / IEC62040-1 / IEC62040-2


Features:

•
  Three-phase Design



•
  ECO Mode



•
  Color LCD Panel



•
  Dual Inputs



•
  Pure Sine Wave Output



•
  Maintenance Bypass Switch



•
  Emergency Power Off (EPO) Port



•
  PowerPanel Management Software



•
  Online (Double Conversion) UPS Topology



•
  LCD Touch Panel



•
  UPS Parallel Expansion



•
  Generator Compatible



•
  Overload Protection



•
  LCD Status Display



•
  SNMP/HTTP Remote Management Capability
