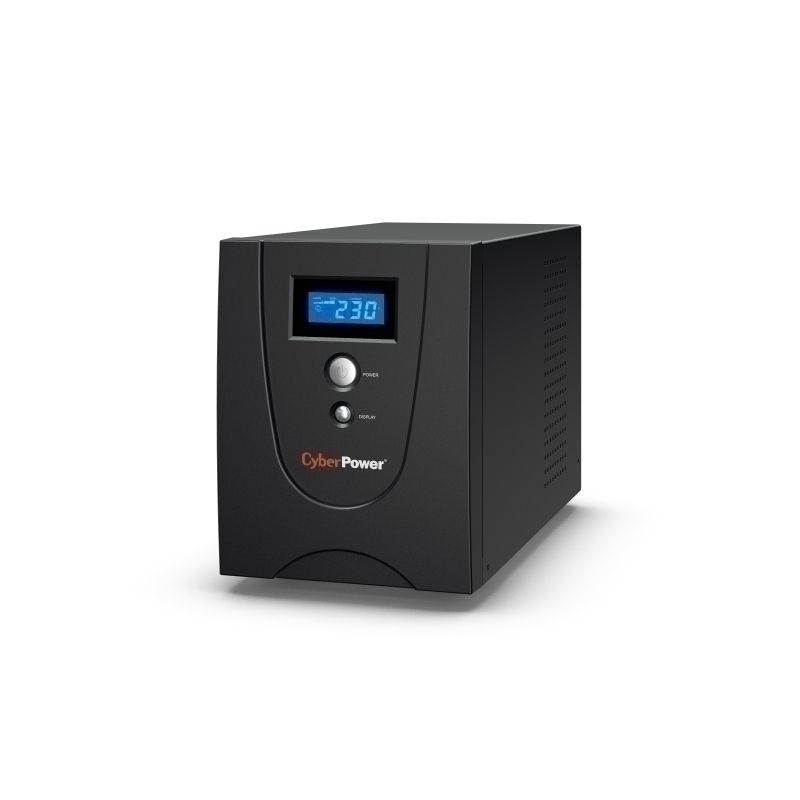

CyberPower Value Tower LCD Backup UPS System - 2200VA

Specifications:

• Form Factor: Tower


• UPS Topology: Line-interactive


• Energy Saving Technology: GreenPower UPS Bypass Technology


• Nominal Input Voltage ( Vac ): 230 � 10%


• Input Voltage Range ( Vac ): 170 ~ 290


• Input Frequency ( Hz ): 50 � 5 | 60 � 5


• Input Frequency Detection: Auto-sensing


• Rated Input Current ( A ): 10


• Input Connector Type: IEC C14


• Detachable Power Cord Plug Type: AU x 1


• Power Cord Length: 1.8m


• Output Capacity (VA): 2200


• Output Capacity (Watts): 1320


• On Battery Waveform: Simulated Sine Wave


• On Battery Voltage(s) ( Vac ): 230 � 10%


• On Battery Frequency ( Hz ): 50 � 1% | 60 � 1%


• Automatic Voltage Regulation (AVR): Single Boost, Single Buck


• Overload Protection: Circuit Breaker


• Outlet(s) - Total: 4


• Outlet Type: AU x 4


• Outlet(s) - Battery & Surge Protected: 4


• Typical Transfer Time ( ms ): 4


• Battery Runtime at Half Load ( min ): 7


• Runtime at Full Load ( min ): 1


• Typical Recharge Time ( Hours ): 8


• Start On Battery: Yes


• User-replaceable: Yes


• Battery Type: Sealed Lead-acid


• Battery Cartridge (RBP): RBP0086


• Battery Cartridge (RBP) Quantity ( pcs ): 2


• Surge Suppression ( Joules ): 125


• EMI/RFI Filtration: Yes


• Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out


• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information


• LCD Setting & Control: Alarm Setting


• LED Indicators: Power On


• HID Compliant USB Port(s): 1


• Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault


• Management Cable ( pcs ): Power Cord x1, USB Cable x1, Phone Line x1


• Power Management Software: PowerPanel Personal (Recommended)


• Enclosure Construction: Metal


• Dimensions: 140 x 180 x 326mm


• Weight: 14.5kg


• Online Thermal Dissipation ( BTU/hr ): 225


• Certifications: CE | C-Tick | EAC


• RoHS: Yes


• Product Warranty: 2 Years


• Battery Warranty: 2 Years

Features:

• Line-interactive UPS Topology


• Simulated Sine Wave Output


• Surge and Spike Protection


• LCD Status Display


• Tower Form Factor


• Energy Saving Technology


• Automatic Voltage Regulation (AVR)


• Phone/Fax/Modem/DSL/Network Protection


• PowerPanel Management Software
