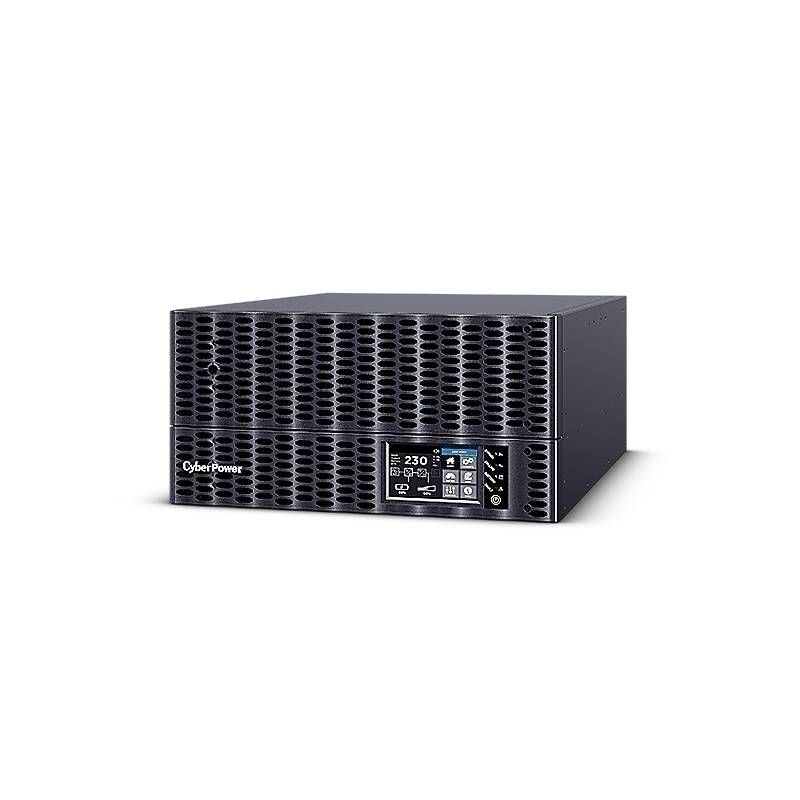

CyberPower 40KVA/40KW Rack UPS

Specifications:

• Phase: Three Phase


• Form Factor: Rackmount, Tower


• UPS Topology: Online Double Conversion


• Energy Saving Technology: Online ECO Mode Efficiency > 98.9%


• Normal Mode Efficiency ( % ): 95.8%


• Battery Mode Efficiency ( % ): 95.5%


• Active PFC Compatibility: Yes


• Parallel Expansion (Max. Units): 4


• Dual Power Inputs: Yes


• Generator Compatibility: Yes


• Nominal Input Voltage ( Vac ): Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac


• Input Voltage Range ( Vac ): Line to Neutral (L-N): 132 ~ 276 Vac, Line to Line (L-L): 228 ~ 478 Vac


• Input Frequency Range ( Hz ): 40 ~ 70


• Rated Input Current ( A ): 64.5


• Input Power Factor: 0.99


• Overload Protection (Bypass): 125% Load for continuous operation, 150% Load for 10 min, 1000% Load for 5 ms


• Input Connector Type: Hardwire Terminal Block


• Capacity (VA): 40000


• Capacity (Watts): 40000


• On Battery Waveform: Pure Sine Wave


• Output Voltage Setting: Configurable


• Output Frequency Setting: Configurable


• Rated Output Voltage ( Vac ): Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac


• Output Voltage Tolerance ( % ): Balance Load: 1 %


• Output Frequency ( Hz � % ): 50 � 0.2, 60 � 0.166


• Power Factor: 1


• ECO Mode Voltage Tolerance: � 5 %


• Overload Protection: Internal Current Limiting, Fuse


• Overload Protection (Line Mode): 102~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load for 200 ms


• Overload Protection (Battery Mode): 102~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load for 200 ms


• Crest Factor: 3 : 1


• Harmonic Distortion (Linear Load): THD?1%


• Harmonic Distortion (Non-linear Load): THD?3%


• Internal Bypass: Automatic Bypass


• Synchronization Window (Nominal) ( Hz ): � 4


• Outlet Type: Hardwire Terminal Block x 1


• Typical Transfer Time ( ms ): 0


• Maximum Charging Current ( A ): 12


• Typical Charging Current ( A ): 3.6


• Compatible Battery Types: VRLA


• Recharge Power Setting: Configurable


• Charger Voltage Tolerance ( % ): ? 1 %


• Start On Battery: Yes


• Smart Battery Management (SBM): Yes


• Compatible Extended Battery Module (EBM): BME480V55ART5U


• External Battery Quantity: 12V x 40pcs


• EMI/RFI Filtration: Yes


• LCD Panel: Yes


• LCD Types: Color LCD, LCD Touch Panel


• LCD Orientation: Rotatable LCD ? Manual


• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log


• LCD Setting & Control: Mode Setting, Input & Output, Battery Setting, Communication, Event & Log, Security Setting, Language


• LED Indicators: Yes


• Shortcut Button: Alarm On/Off


• Serial Port: RS232 x 1 + RS485 x 1 + Dry Contact x1


• Dry Contact (with Relay): Yes


• Emergency Power Off (EPO) Port: Yes


• Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery


• Power Management Software: PowerPanel Business (Recommended)


• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205


• Compatible with Racks (3 Phase): Yes


• Enclosure Construction: Metal


• Color: Black


• Ingress Protection: IP20


• Rackmount Rail: Yes


• Dimensions (mm.): 433 x 219 x 730


• Weight (kg.): 42.8


• Installed Rack Height ( U ): 5


• Operating Temperature (�C): 0 ~ 40


• Operating Relative Humidity (Non-condensing) ( % ): 0 ~ 95


• Operating Elevation (meters): 0-3,000


• Storage Temperature (�C): -40 ~ 70


• Storage Relative Humidity (Non-condensing) ( % ): 0 ~ 95


• Audible Noise at 1.0M from Surface of Unit: 66dBA(100% load), 56dBA(50% load)

Features:

• Three-phase Design


• High Output Power Factor


• Color LCD Panel


• Dual Inputs


• Pure Sine Wave Output


• Battery Cold Start


• SNMP/HTTP Remote Management Capability (Optional)


• Extended Battery Module (EBM)


• Online (Double Conversion) UPS Topology


• Rack Modular Design


• LCD Touch Panel


• Generator Compatible


• UPS Parallel Expansion


• Smart Battery Management (SBM)


• PowerPanel Management Software
