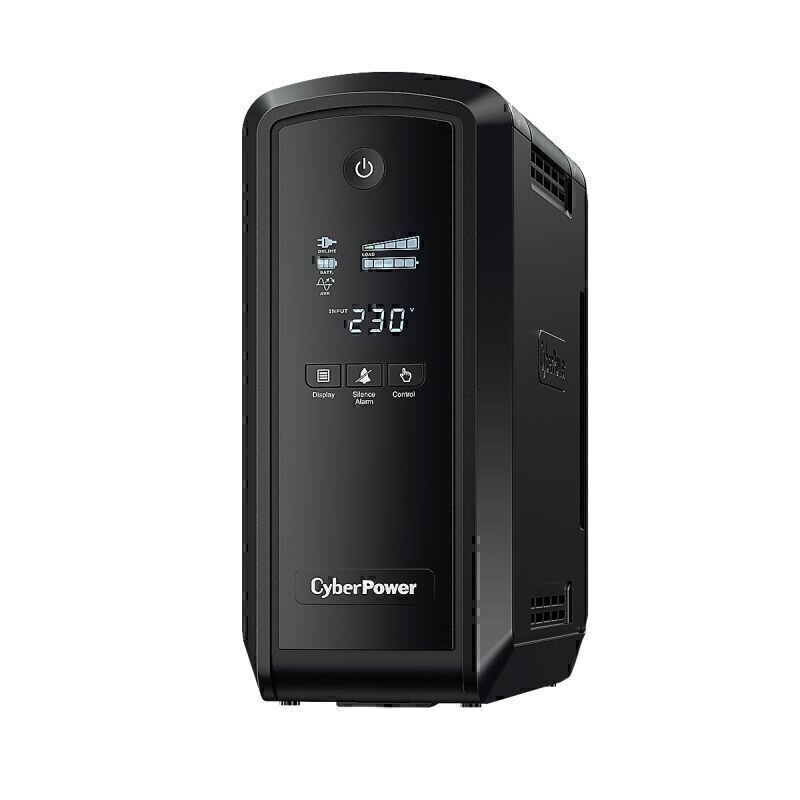

CP PFC Sinewave Series 900VA

Cyberpower PFC Sinewave Series 900VA - DS

Specifications:

• Phase: Single Phase


• Form Factor: Tower


• UPS Topology: Line-interactive


• Energy Saving Technology: GreenPower UPS Bypass Technology


• Active PFC Compatibility: Yes


• Nominal Input Voltage ( Vac ): 230


• Input Voltage Range ( Vac ): 170 - 270


• Input Frequency ( Hz ): 50 � 3 | 60 � 3


• Input Frequency Detection: Auto-sensing


• Rated Input Current ( A ): 10


• Input Connector Type: IEC C14


• Power Cord Length (m.): 1.83


• Output Capacity (Watts): 540


• On Battery Waveform: Pure Sine Wave


• On Battery Voltage(s) ( Vac ): 230 � 10%


• On Battery Frequency ( Hz ): 50 � 1% | 60 � 1%


• Automatic Voltage Regulation (AVR): Single Boost


• Overload Protection: Internal Current Limiting, Circuit Breaker


• Outlet(s) - Total: 6


• Outlet(s) - Battery & Surge Protected: 3


• Outlet(s) - Surge-Only Protected: 3


• Typical Transfer Time ( ms ): 4


• Runtime at Half Load ( min ): 7


• Runtime at Full Load ( min ): 1


• Typical Recharge Time ( Hours ): 8


• Battery Type: Sealed Lead-acid


• Battery Cartridge: RBP0051


• RBP Quantity ( pcs ): 1


• Surge Suppression ( Joules ): 405


• EMI/RFI Filtration: Yes


• Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out


• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log


• LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Event & Log


• HID Compliant USB Port(s): 1


• Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault


• Management Cable ( pcs ): Power Cord x2, USB Cable x1


• Ethernet Data Transmission Speed: Up to 1Gbps


• Power Management Software: PowerPanel Personal (Recommended)


• Enclosure Construction: Plastic


• Dimensions: 100 x 230 x 275mm


• Weight: 7.1kg


• Certifications: CE, EAC, RCM

Features:

• ine-interactive UPS Topology


• Active PFC Compatible


• Automatic Voltage Regulation (AVR)


• LED Status Indicator


• Surge and Spike Protection


• Tower Form Factor


• Energy Saving Technology


• Pure Sine Wave Output


• LCD Status Display


• PowerPanel Management Software


• Phone/Fax/Modem/DSL/Network Protection
