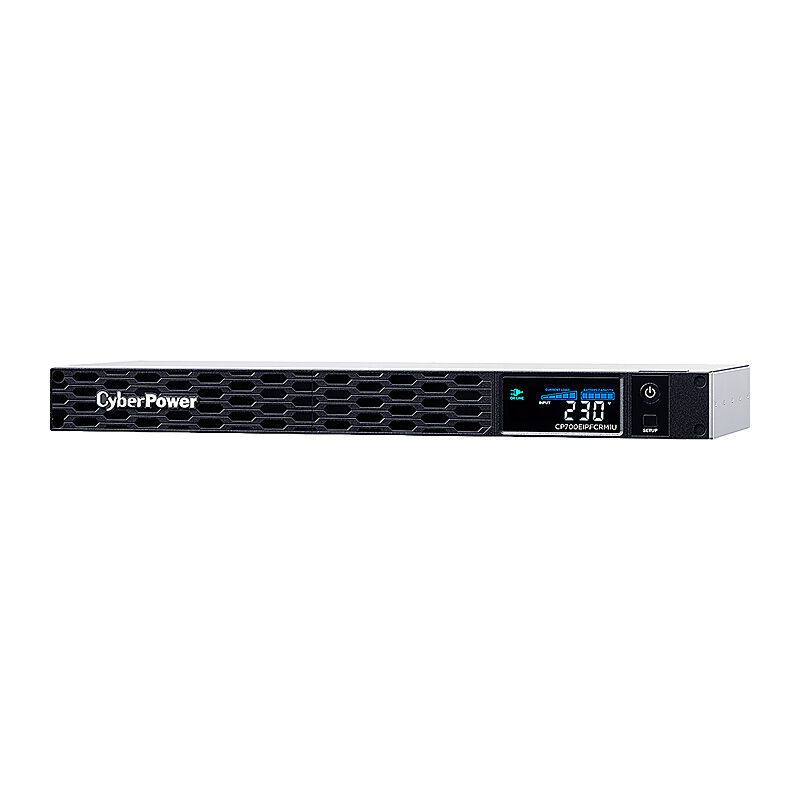

About CP PFC Sinewave Series 700VA

CyberPower Systems PFC Sinewave Series 700VA / 420W Tower UPS - 1U -6x IEC C13 (2x Surge Protection only) 6V/8Ah*2? 2 Yrs Adv. Replacement WTY Incl. internal Batteries

Features

•
  Line-interactive UPS topology



•
  Active PFC compatible



•
  Automatic Voltage Regulation (AVR)



•
  Critical & Non-critical load outlets



•
  Color LCD panel



•
  USB connectivity



•
  PowerPanel management software



•
  Surge and spike protection



•
  Short-depth chassis design



•
  Energy saving technology



•
  Pure sine wave output



•
  Overload protection



•
  Hot-swappable batteries



•
  LED status indicator



•
  High-speed Ethernet data transmission



•
  SNMP/HTTP remote management (optional)



•
  Network protection


Specifications

General

•
  Form Factor: Rackmount (1U)



•
  UPS Topology: Line-interactive



•
  Energy Saving Tech: GreenPower UPS™ Bypass



•
  Active PFC Compatibility: Yes


Input

•
  Nominal Voltage: 220 / 230 / 240 Vac



•
  Voltage Range: 165 ~ 271 Vac



•
  Adjustable Range: 189 ~ 207 Vac / 253 ~ 271 Vac



•
  Frequency: 50/60 Hz ± 3 (Auto-sensing)



•
  Rated Current: 10 A



•
  Connector: IEC C14 (Straight Plug)



•
  Detachable Cord: AU x1, IEC C14 x4



•
  Cord Length: 6 ft / 1.83 m


Output

•
  Capacity: 700 VA / 420 W



•
  Waveform: Pure Sine Wave



•
  Voltage: 230 Vac ± 5%



•
  Frequency: 50/60 Hz ± 1%



•
  Power Factor: 0.6



•
  AVR: Single Boost



•
  Overload Protection: Circuit Breaker & Current Limiting



•
  Total Outlets: 6 (IEC C13)



•
  Battery & Surge Protected: 4



•
  Surge-only Protected: 2



•
  Critical Load Outlets: 2



•
  Non-critical Load Outlets: 2



•
  Transfer Time: 6 ms (Max 9 ms)


Battery

•
  Runtime: 9.6 min (Half Load), 2 min (Full Load)



•
  Recharge Time: 8 hours (90% recovery)



•
  Start on Battery: Yes



•
  User-replaceable & Hot-swappable: Yes



•
  Type: Sealed Lead-acid



•
  Replacement Cartridge: RBP0019 (x1)


Protection & Network

•
  Surge Suppression: 450 Joules



•
  Network Protection: RJ45 (1-in / 1-out)


Management & Indicators

•
  LCD Panel: Color LCD (Power, Battery, Load, Fault, Warning)



•
  Controls: Alarm, Input/Output, Battery Settings



•
  LED Indicators: Power On



•
  USB Port: HID Compliant (x1)



•
  Serial Port: Contact Signals



•
  Audible Alarms: Battery Mode, Low Battery, Overload, Fault



•
  Included Cable: USB Cable x1



•
  Ethernet Speed: Up to 1Gbps



•
  Software: PowerPanel Business (Recommended)



•
  Remote Monitoring: Optional RMCARD205



•
  Cloud Service: 90 Days Free Trial


Physical

•
  Enclosure: Metal, Silver



•
  Dimensions: 433 x 44 x 229.7 mm (17.05 x 1.73 x 9.04 in)



•
  Weight: 8.3 kg (18.3 lbs)



•
  Shipping Size: 530 x 155 x 280 mm (20.87 x 6.1 x 11.02 in)



•
  Shipping Weight: 9.02 kg (19.86 lbs)


Environmental

•
  Operating Temp: 0 ~ 40 °C (32 ~ 104 °F)



•
  Humidity: 0 ~ 95% (Non-condensing)



•
  Operating Elevation: 0 ~ 3,000 m (0-9,843 ft)



•
  Storage Temp: -5 ~ 45 °C (5 ~ 113 °F)



•
  Storage Elevation: 0 ~ 15,000 m (0-49,213 ft)



•
  Heat Dissipation: 17 BTU/hr


Certifications

•
  CE, RCM



•
  RoHS Compliant
