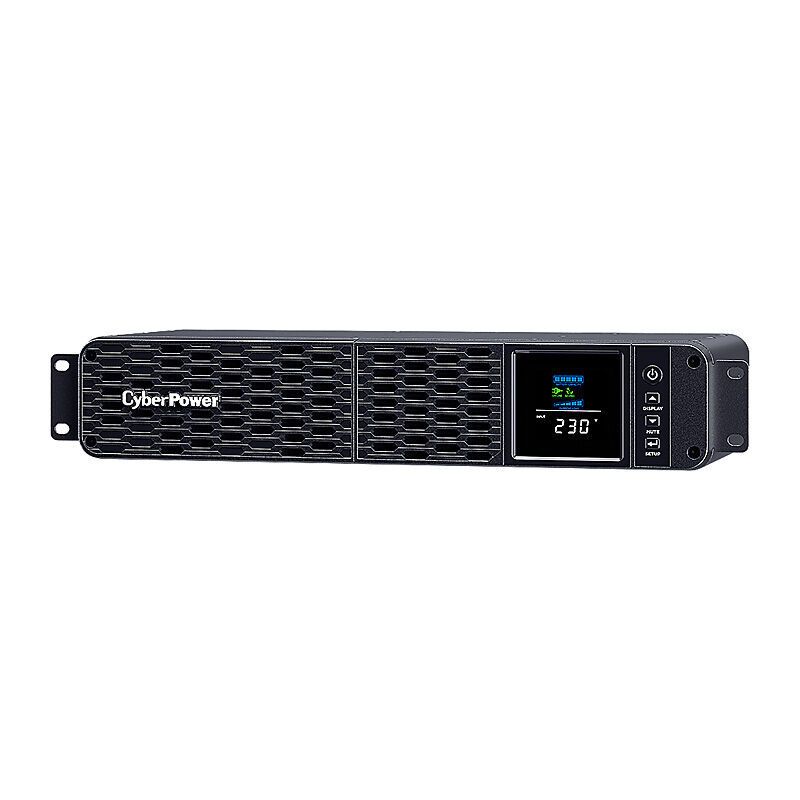

About CP PFC Sinewave Series 1600VA

CyberPower Systems PFC Sinewave Series 1600VA / 1000W Tower UPS - 2U -6x IEC C13 (2x Surge Protection only) 12V/9Ah*2 2 Yrs Adv. Replacement WTY Incl. internal Batteries

Features

•
  Line-interactive UPS Topology



•
  Active PFC Compatible



•
  Automatic Voltage Regulation (AVR)



•
  Critical/Non-critical Load Outlets



•
  Color LCD Panel



•
  USB Connectivity Port



•
  PowerPanel Management Software



•
  Surge and Spike Protection



•
  Network Protection



•
  Energy Saving Technology



•
  Pure Sine Wave Output



•
  Overload Protection



•
  Hot-swappable Batteries



•
  LED Status Indicator



•
  High-speed Ethernet Data Transmission



•
  SNMP/HTTP Remote Management Capability (Optional)



•
  EMI and RFI Filtration



•
  Short-depth Chassis Design


Specifications

General

•
  Phase: Single Phase



•
  Form Factor: Rackmount



•
  UPS Topology: Line-interactive



•
  Energy Saving Technology: GreenPower UPS™ Bypass Technology



•
  Active PFC Compatibility: Yes


Input

•
  Nominal Voltage: 230 Vac



•
  Voltage Range: 169 ~ 271 Vac



•
  Frequency: 50 ± 3 Hz / 60 ± 3 Hz



•
  Frequency Detection: Auto-sensing



•
  Rated Current: 10 A



•
  Connector Type: IEC C14



•
  Detachable Power Cord: IEC C14 x 1



•
  Cord Length: 6 ft / 1.8 m


Output

•
  Capacity: 1600 VA / 1000 W



•
  Waveform: Pure Sine Wave



•
  Voltage: 230 ± 5 %



•
  Frequency: 60 ± 1% / 50 ± 1%



•
  Power Factor: 0.625



•
  AVR: Single Boost



•
  Overload Protection: Internal Current Limiting, Circuit Breaker



•
  Total Outlets: 8 (IEC C13 x 8)



•
  Battery & Surge Protected: 8



•
  Critical Load Outlets: 4



•
  Non-critical Load Outlets: 4


Battery

•
  Runtime: 10.4 min (Half Load), 2.5 min (Full Load)



•
  Recharge Time: 8 hours (to 90%)



•
  User-replaceable / Hot-swappable: Yes



•
  Battery Type: Sealed Lead-acid



•
  Battery Cartridge: RBP0166 (x1)


Protection & Network

•
  Surge Suppression: 900 Joules



•
  EMI/RFI Filtration: Yes



•
  Network Protection RJ45: 1-in, 1-out


Management & Indicators

•
  LCD Panel: Color LCD (Power, Battery, Load, Fault & Warning)



•
  LED Indicators: Power On



•
  USB Port: HID Compliant (x1)



•
  Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault



•
  Management Cables: Power Cord x1, USB Cable x1



•
  Ethernet Speed: Up to 1Gbps



•
  Power Management Software: PowerPanel Business (Recommended)



•
  SNMP/HTTP Remote Monitoring: Yes (Optional RMCARD205)



•
  PowerPanel Cloud Service: 90 Days Free Trial


Physical

•
  Enclosure: Plastic, Black, Rackmount Ears Included



•
  Dimensions (WxHxD): 433 x 86 x 274 mm



•
  Weight: 12.56 kg



•
  Shipping Dimensions: 523 x 162 x 374 mm



•
  Shipping Weight: 13.92 kg


Environmental

•
  Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)



•
  Operating Humidity: 0 ~ 95% (Non-condensing)



•
  Operating Elevation: 0-3,000 m (0-9,843 ft)



•
  Storage Temperature: -15 ~ 45 °C (5 ~ 113 °F)



•
  Storage Humidity: 0 ~ 95% (Non-condensing)



•
  Storage Elevation: 0-15,000 m (0-49,213 ft)



•
  Thermal Dissipation: 20.5 BTU/hr


Certifications

•
  CE



•
  RoHS
