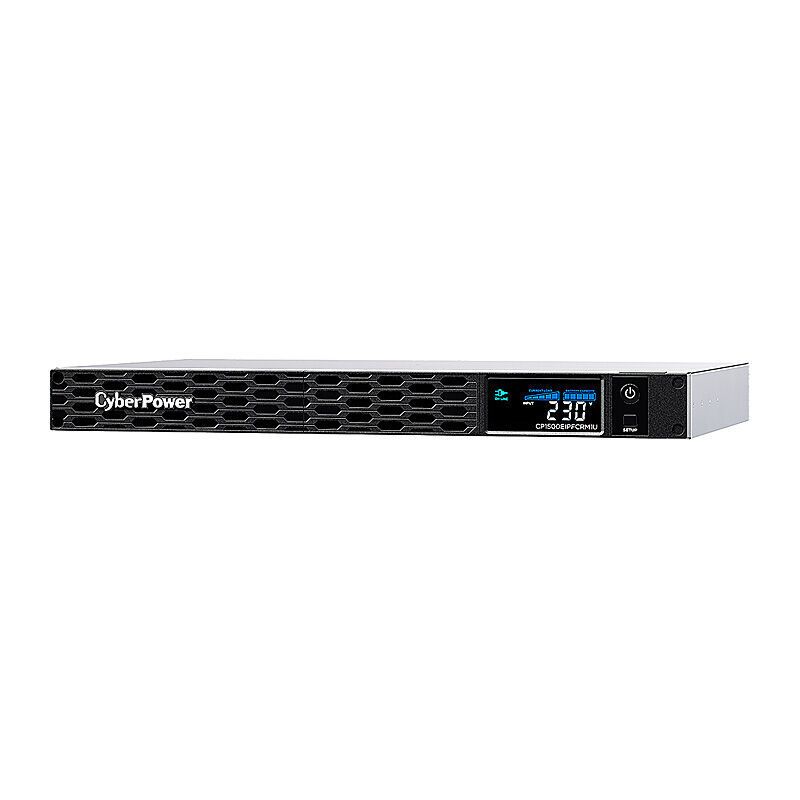

About CP PFC Sinewave Series 1500VA

CyberPower Systems PFC Sinewave Series 1500VA / 900W Tower UPS - 1U -6x IEC C13 (2x Surge Protection only) 6V/9Ah*4 2 Yrs Adv. Replacement WTY Incl. internal Batteries

Features

•
  Line-interactive UPS Topology



•
  Active PFC Compatible



•
  Automatic Voltage Regulation (AVR)



•
  Critical/Non-critical Load Outlets



•
  Color LCD Panel



•
  USB Connectivity Port



•
  PowerPanel Management Software



•
  Surge and Spike Protection



•
  Short-depth Chassis Design



•
  Energy Saving Technology



•
  Pure Sine Wave Output



•
  Overload Protection



•
  Hot-swappable Batteries



•
  LED Status Indicator



•
  High-speed Ethernet Data Transmission



•
  SNMP/HTTP Remote Management Capability (Optional)



•
  Network Protection


Specifications

General

•
  Phase: Single Phase



•
  Form Factor: Rackmount



•
  UPS Topology: Line-interactive



•
  Energy Saving Technology: GreenPower UPS™ Bypass Technology



•
  Active PFC Compatibility: Yes


Input

•
  Nominal Input Voltage: 220 / 230 / 240 Vac



•
  Input Voltage Range: 165 ~ 271 Vac



•
  Adjustable Voltage Range: 189 ~ 207 Vac, 253 ~ 271 Vac



•
  Input Frequency: 50 ± 3 Hz / 60 ± 3 Hz (Auto-sensing)



•
  Rated Input Current: 10 A



•
  Input Connector Type: IEC C14



•
  Plug Style: Straight



•
  Detachable Power Cord Plug Type: IEC C14 x4, AU x2



•
  Power Cord Length: 6 ft (1.83 m)


Output

•
  Capacity: 1500 VA / 900 W



•
  On Battery Waveform: Pure Sine Wave



•
  On Battery Voltage: 230 ± 5%



•
  On Battery Frequency: 50 ± 1% / 60 ± 1%



•
  Power Factor: 0.6



•
  Automatic Voltage Regulation: Single Boost



•
  Overload Protection: Internal Current Limiting, Circuit Breaker



•
  Total Outlets: 6 (IEC C13)



•
  Battery & Surge Protected: 4



•
  Surge-Only Protected: 2



•
  Critical Load (CL): 2



•
  Non-critical Load (NCL): 2



•
  Typical Transfer Time: 7 ms (Max 10 ms)


Battery

•
  Runtime at Half Load: 9.3 min



•
  Runtime at Full Load: 1.4 min



•
  Typical Recharge Time: 8 hours (90% recovery)



•
  Start On Battery: Yes



•
  User-replaceable: Yes



•
  Hot-swappable: Yes



•
  Battery Type: Sealed Lead-acid



•
  Battery Cartridge: RBP0026 (1 pc)


Surge Protection & Filtering

•
  Surge Suppression: 450 Joules



•
  Network Protection RJ45: 1-in, 1-out


Management & Communications

•
  LCD Panel: Color LCD



•
  LCD Information: Power Status, Battery Status, Load Status, Fault & Warning



•
  LCD Settings: Alarm, Input & Output, Battery



•
  LED Indicators: Power On



•
  USB Port: 1 (HID Compliant)



•
  Serial Port: Contact Signals



•
  Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault



•
  Management Cable: Power Cord x2, USB Cable x1



•
  Ethernet Data Transmission: Up to 1Gbps



•
  Software: PowerPanel Business (Recommended)



•
  SNMP/HTTP Remote Monitoring: Optional (RMCARD205)



•
  Cloud Service: PowerPanel (90 Days Free Trial)


Physical

•
  Enclosure: Metal



•
  Color: Silver



•
  Rackmount Ears: Yes



•
  Size (UPS Module): 433 x 44 x 388.7 mm (17.05 x 1.73 x 15.3 in)



•
  Weight: 14.99 kg (33.05 lbs)



•
  Installed Rack Height: 1U



•
  Shipping Dimensions: 530 x 158 x 494 mm (20.87 x 6.22 x 19.45 in)



•
  Shipping Weight: 17.06 kg (37.61 lbs)


Environmental

•
  Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)



•
  Operating Humidity: 0 ~ 95% (Non-condensing)



•
  Operating Elevation: 0–3,000 m (0–9,843 ft)



•
  Storage Temperature: -5 ~ 45 °C (5 ~ 113 °F)



•
  Storage Humidity: 0 ~ 95% (Non-condensing)



•
  Storage Elevation: 0–15,000 m (0–49,213 ft)



•
  Online Thermal Dissipation: 30.7 BTU/hr


Certifications

•
  CE, RCM



•
  RoHS Compliant
