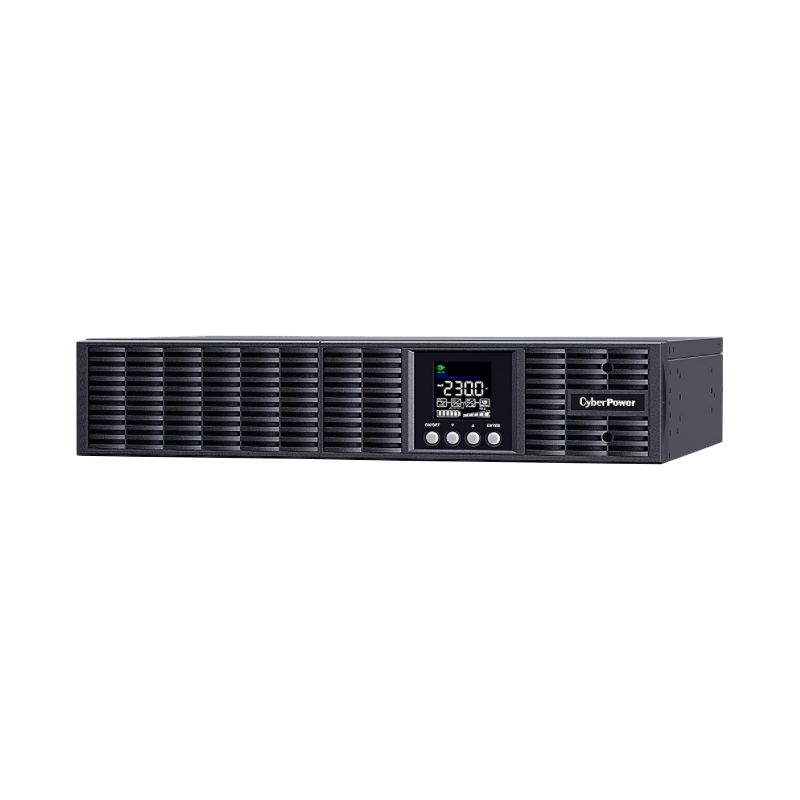

CP OLS Rack/Tower 2000VA/1800W

Cyberpower OLS Rack/Tower 2000VA/1800W - DS

Specifications:

• Phase: Single Phase


• Form Factor: Rackmount, Tower


• UPS Topology: Online Double Conversion


• Energy Saving Technology: Online ECO Mode Efficiency > 95%


• Active PFC Compatibility: Yes


• Generator Compatibility: Yes


• Nominal Input Voltage ( Vac ): 230 � 10%


• Input Voltage Range ( Vac ): 190 - 300


• Adjustable Voltage Range ( Vac ): 0-30% Load for 80 - 300 Vac | 0-50% Load for 120 - 300 Vac | 0-75% Load for 160 - 300 Vac | 0-90% Load for 190 - 300 Vac | 0-100% Load for 200 - 300 Vac


• Input Frequency ( Hz ): 50 � 10 | 60 � 10


• Input Frequency Detection: Auto-sensing


• Rated Input Current ( A ): 9


• Input Power Factor: 0.99


• Input Connector Type: IEC C14


• Power Cord Length (m.): 1.5


• Output Capacity (Watts): 1800


• On Battery Waveform: Pure Sine Wave


• On Battery Voltage(s) ( Vac ): 208 � 1% | 220 � 1% | 230 � 1% | 240 � 1%


• Output Voltage Setting: Configurable


• On Battery Frequency ( Hz ): 50 � 0.5% | 60 � 0.5%


• Output Frequency Setting: Configurable


• Power Factor: 0.9


• ECO Mode Voltage Tolerance: � 15 %


• Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse


• Overload Protection (Line Mode): 110-120% Load for 1 min, >120% Load Immediately


• Overload Protection (Battery Mode): 110-120% Load for 10 sec, >120% Load Immediately


• Overload Protection (Bypass Mode): >130% Load Immediately


• Crest Factor: 3 : 1


• Harmonic Distortion (Linear Load): THD?3%


• Harmonic Distortion (Non-linear Load): THD?5%


• Internal Bypass: Automatic Bypass, Manual Bypass


• Outlet(s) - Total: 8


• Outlet Type: IEC C13 x 8


• Outlet(s) - Battery & Surge Protected: 8


• Outlet(s) - Critical Load (CL): 4


• Outlet(s) - Non-Critical Load (NCL): 4


• Typical Transfer Time ( ms ): 0


• Runtime at Half Load ( min ): 11.9


• Runtime at Full Load ( min ): 4


• Typical Recharge Time ( Hours ): 4


• Maximum Charging Current ( A ): 1.5


• Start On Battery: Yes


• Smart Battery Management (SBM): Yes


• User-replaceable: Yes - Qualified Personnel Only


• Battery Type: Sealed Lead-acid


• Battery Cartridge: RBP0157


• RBP Quantity ( pcs ): 1


• Battery Quantity (Each RBP) ( pcs ): 4


• Battery Voltage (Each RBP) ( V ): 48


• Compatible Extended Battery Module (EBM): BPSE48V40ART2U


• Extended Battery Module Auto-detection: Yes


• Max. EBM Quantity ( pcs ): 3


• Surge Suppression ( Joules ): 363


• EMI/RFI Filtration: Yes


• Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out


• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log


• LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting


• HID Compliant USB Port(s): 1


• Dry Contact (with Relay): Yes


• Emergency Power Off (EPO) Port: Yes


• Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery


• Management Cable ( pcs ): Power Cord x2, USB Cable x1


• Power Management Software: PowerPanel Business (Recommended)


• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205


• Enclosure Construction: Metal


• Rackmount Rail: Yes


• Rackmount Ears: Yes


• Dimensions: 438 x 88 x 430


• Weight: 19.2kg


• Certifications: CE, RCM

Features:

• Online (Double Conversion) UPS Topology


• Generator Compatible


• Zero Transfer Time


• Extended Battery Module Auto-detection


• Critical/Non-critical Load Outlets


• Phone/Fax/Modem/DSL/Network Protection


• Variable Speed Fans


• PowerPanel Management Software


• Rack/Tower Convertible Configurations


• ECO Mode


• Overload Protection


• Smart Battery Management (SBM)


• Surge and Spike Protection


• EMI and RFI Filtration


• Color LCD Panel


• Emergency Power Off (EPO) Port


• SNMP/HTTP Remote Management Capability (Optional)
