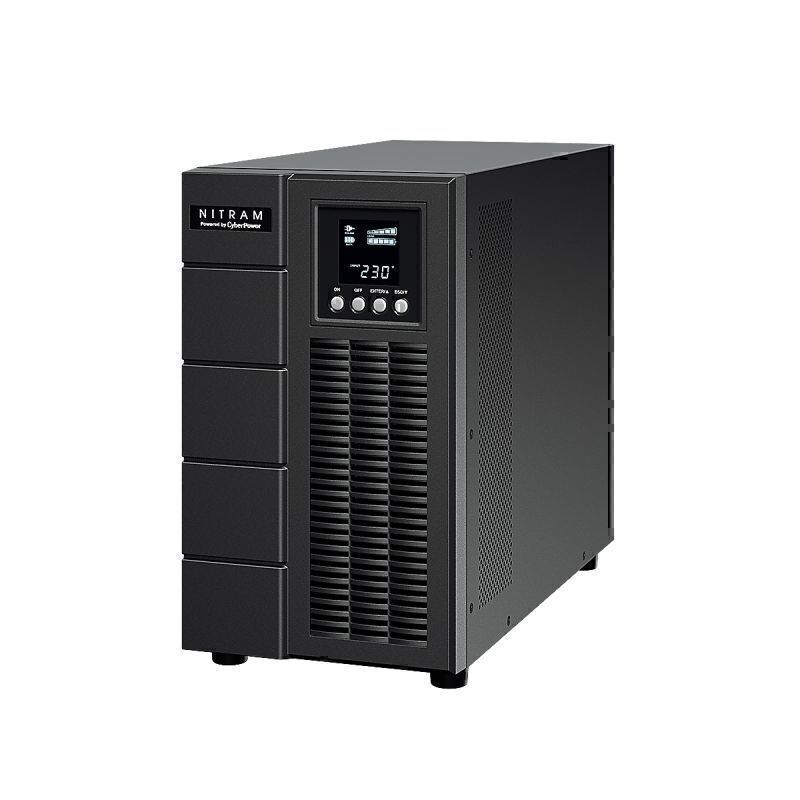

CP 2000VA/1800W Tower UPS

Cyberpower 2000VA/1800W Tower UPS - DS

Specifications:

• Phase: Single Phase


• Form Factor: Tower


• 95%


• Active PFC Compatibility: Yes


• Generator Compatibility: Yes


• Nominal Input Voltage ( Vac ): 230 � 10%


• Input Voltage Range ( Vac ): 160 ~ 300


• Adjustable Voltage Range ( Vac ): 0~50% Load for 110 ~ 300 Vac | 0~60% Load for 120 ~ 300 Vac | 0~80% Load for 140 ~ 300 Vac | 0~100% Load for 160 ~ 300 Vac


• Input Frequency ( Hz ): 50 � 10 | 60 � 10


• 120% Load Immediately


• Overload Protection (Battery Mode): 110~120% Load for 10 sec, >120% Load Immediately


• Overload Protection (Bypass Mode): >130% Load Immediately


• Crest Factor: 3 : 1


• Harmonic Distortion (Linear Load): THD?3%


• Harmonic Distortion (Non-linear Load): THD?5%


• Internal Bypass: Automatic Bypass, Manual Bypass


• Outlet(s) - Total: 5


• Outlet Type: Hardwire Terminal Block x 1 | IEC C13 x 4


• Outlet(s) - Battery & Surge Protected: 4


• Typical Transfer Time ( ms ): 0


• Runtime at Half Load ( min ): 15


• Runtime at Full Load ( min ): 5


• Typical Recharge Time ( Hours ): 5


• Maximum Charging Current ( A ): 1


• Start On Battery: Yes


• Smart Battery Management (SBM): Yes


• User-replaceable: No


• Battery Type: Sealed Lead-acid


• Compatible Extended Battery Module (EBM): BPSE72V45A


• Max. EBM Quantity ( pcs ): 3


• Surge Suppression ( Joules ): 440


• EMI/RFI Filtration: Yes


• Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out


• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log


• LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting


• HID Compliant USB Port(s): 1


• Emergency Power Off (EPO) Port: Yes


• Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery


• Management Cable ( pcs ): Power Cord x2, USB Cable x1, Phone Line x1


• Power Management Software: PowerPanel Business (Recommended)


• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205


• Enclosure Construction: Metal


• Dimensions: 196 x 337 x 416mm


• Weight: 23.8kg


• Certifications: CE, RCM

Features:

• Online (Double Conversion) UPS Topology


• Generator Compatible


• Zero Transfer Time


• Extended Battery Module (EBM)


• EMI and RFI Filtration


• LCD Status Display


• PowerPanel Management Software


• ECO Mode


• Overload Protection


• Smart Battery Management (SBM)


• Surge and Spike Protection


• Phone/Fax/Modem/DSL/Network Protection


• Emergency Power Off (EPO) Port


• SNMP/HTTP Remote Management Capability (Optional)
